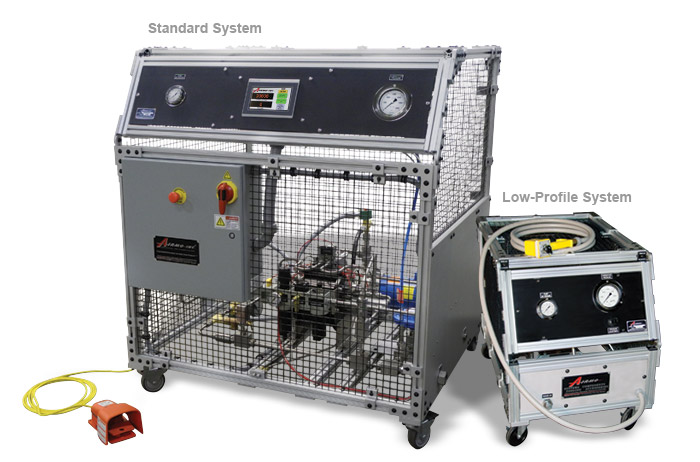

Model HPS Hydraulic Power Supply
Pressures Up to 30,000 psi (2,068 bar)
The TestMaster® Model HPS Hydraulic Power Supply is a high-performance source of hydrostatic water pressure used for leak tests, tube expansion, and swaging. At its core is an air-driven water pump, providing up to 30,000 psi (2,068 bar) water pressure when driven by only 100 psi (7 bar) air.
The HPS System when combined with TestMaster® Hydrostatic Test Tools provides a safe, efficient means of leak testing for tube and hose assemblies, valves, and air-conditioning coils. When combined with ExpanTek® Hydro-Expansion Tools, it can perform tube expansion for heat exchangers or tube-to-tube sheet swaging.
APPLICATIONS
The TestMaster® Model HPS Hydrostatic Pressure Testing System, when used with Airmo tooling, is suitable for testing according to military, nuclear, automotive, and aerospace specifications such as API, ASTM, ASME, ISO, DIN, and BS.
Optional Touch Screen
Digital Display
Efficiently setup, control, store and program machine functions with the touch of a button.
Specifications |
Description |
|
| Maximum Pressure: | Working pressures up to 30,000 psi (2,068 bar) | |
| Maximum Water Flow: |
Up to 12 gpm (45.4 lpm) | |
| Temperature: | 32° F to 120° F (0° C to 49° C) | |
| Services: | Water or de-ionized water | |
| Electrical: | Tailored to electrical service used | |
| Control Options: | Manual, semi-automated, PLC touch screen | |
| Cycle Time: | 2 seconds for small volume tubes | |
| Noise Level: | Runs quietly and silent when dwelling at pressure | |
| Construction: | Rugged aluminum framework | |
| Custom Options: | Custom designs built to application requirements |
