Model 445 Series
Flaring Tools

Pressures Up to 3,000 psi (207 bar)

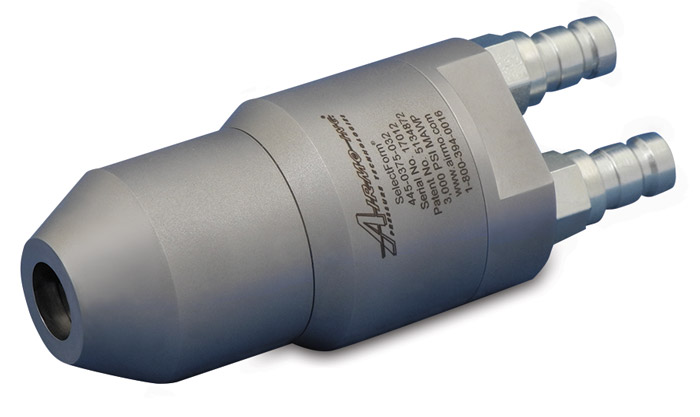

The patented SelectForm® Model 445 Series Flaring Tools when used with the Selectform® Model 400 Hydraulic Power Unit provides a quick and precise means of flaring the ends of tubes made of aluminum, copper, carbon steel, stainless steel, titanium and other materials. Model 445 Series Tools are manufactured to accurately flare end form tube diameters ranging from 0.19 in. to 1.38 in. OD (4.7 mm to 35.0 mm OD). If larger diameter tube end forming is required, then we recommend having a table mounted end forming system manufactured.

The Model 445 Series Tools are precision-machined from heat-treated stainless steel to prolong tool life and produce accurate forms every time. The tool is easy to use, simply place the tool over the tube end and depress the foot switch on the power source. The tool cycles automatically and produces the finished form in 2 to 5 seconds. The tools are designed to produce an exclusive shape with low surface marring.

The Model 445 Series Tools are dedicated, hand-held devices that can be quickly changed from one size to another. Tools connect to the Model 400 Hydraulic Power Unit with dual hydraulic hoses, terminated with quick disconnect couplers.

Play Button View Animation of End Forming Process

Applications

The SelectForm® Model 445 Series Tool is used for many tube end forming applications.

  • Aerospace and aircraft
  • Boiler tubes
  • Heat exchanger and radiator
  • Military
  • Nuclear and hydro-electric
  • Metal furniture
  • On/off-road mobile vehicles
  • Outdoor power equipment
  • Plumbing fittings
  • Sports equipment
  • Boat and water craft
  • Tube manufacturing

Flare tubing fast with 445 Series Tools

Flare tubing made of aluminum, copper, carbon steel, stainless steel,
titanium and other materials.


Specifications
Description
 Maximum Pressure:Working pressures up to 3,000 psi (207 bar)
 Tube OD Range:0.19 in. to 1.38 in. OD (4.7 mm to 35.0 mm OD)
 Temperature:32° F to 120° F (0° C to 49° C)
 Cycle Time:2 to 5 seconds
 Application:45 degree flares
 Materials:Aluminum, carbon steel, copper, stainless steel,
and titanium
 Grip:On tube OD
 Gripping:Pressure-compensated design for safe operation
 Actuation:Hydraulically operated extend and retract
 Low Marking Collet Design:Prevents tube end collapse and damage
 Operation:No lubrication required for most applications
 Compact, Balanced Design:Ease of use in limited space applications
 Construction:Precision-machined, heat-treated stainless steel
 Custom Options:Custom options considered
