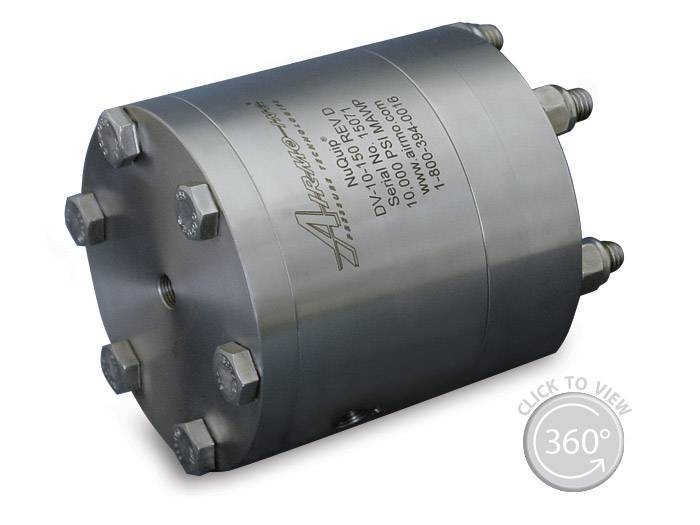

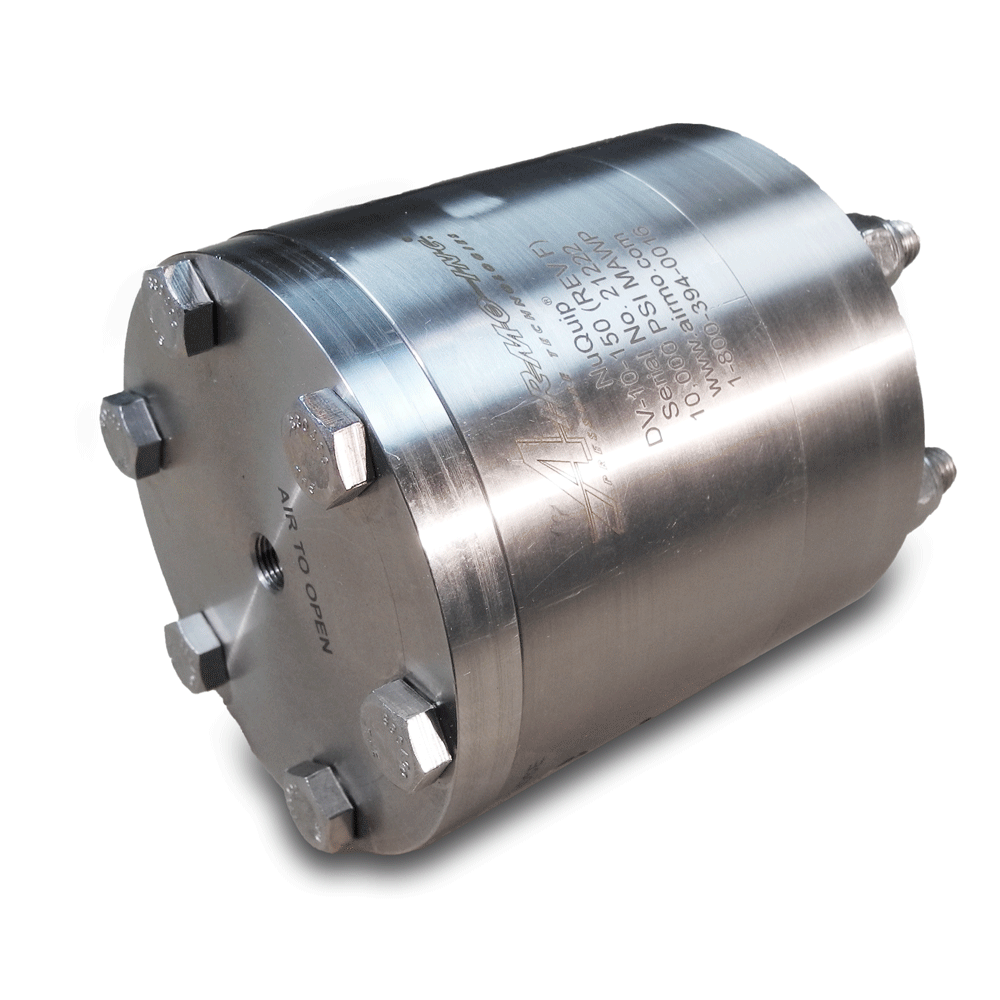

Model DV Series
Dump Valves
Pressures Up to 10,000 psi (689 bar)
The NuQuip® Model DV Series Dump Valve is a pneumatically-operated control valve for instantly releasing the flow of liquids under pressure in a hydrostatic pressure system. Designed for operator safety and to reduce damage to equipment, these valves are used in applications with working pressures up to 10,000 psi (689 bar).
Specifications |
Description |
|
| Maximum Pressure: | 10,000 psi (689 bar) | |
| Temperature: | 32° F to 120° F (0° C to 49° C) | |
| Services: | Water and other liquids | |
| Operation: | Two-stage, air-actuated | |
| Port Style: | NPT (contact Airmo) | |
| Seal Materials: | Compatible with most liquids | |
| Construction: | Precision-machined, heat-treated stainless steel | |
| Custom Options: | Custom designs considered |
