Model QD Series
High-Pressure Quick Disconnects
Pressures Up to 60,000 psi (4,137 bar)
The patented NuQuip® Model QD Series High-Pressure Quick Disconnects ease coupling and de-coupling of tools designed for working pressures up to 60,000 psi (4,137 bar). Depending on the application, standard ports come in either medium or high-pressure models.

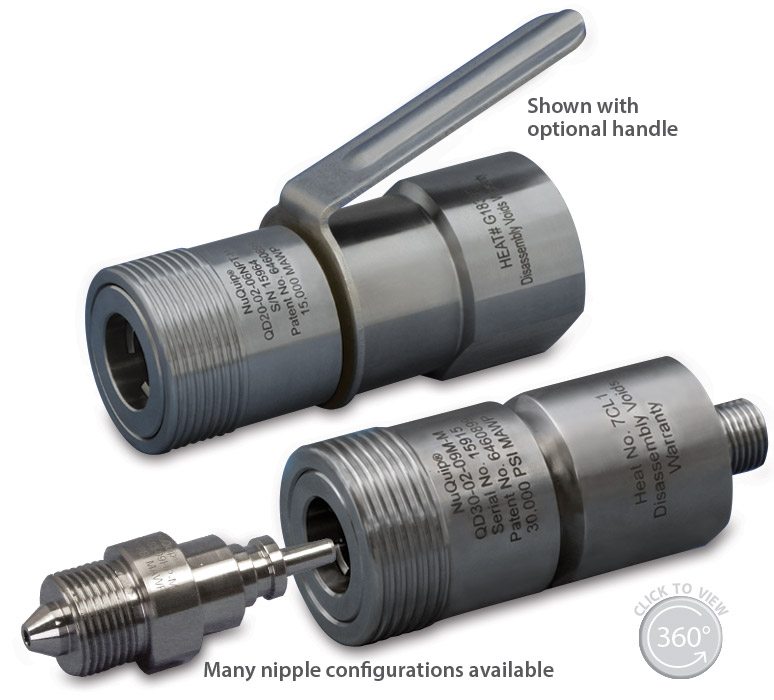

The Airmo Quick Disconnect is available in either valved or non-valved versions. The high-flow check valve configuration allows for minimal pressure drop. For increased operator safety, the unique self-locking coupler stays connected with the nipple under high-pressure. The optional handle eases automated coupling and de-coupling of tools.

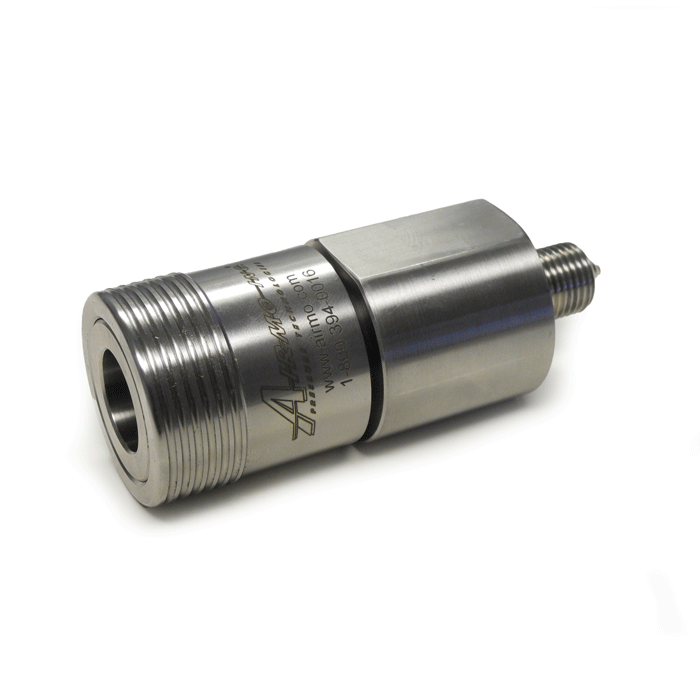

Quick Disconnect couplers are precision-machined from stainless steel making them ideal for a variety of applications including: hydrostatic pressure testing, blasting, waterjet, or off-shore purposes. They can be used with a variety of services including water, oil, liquid nitrogen, other liquids and gases.

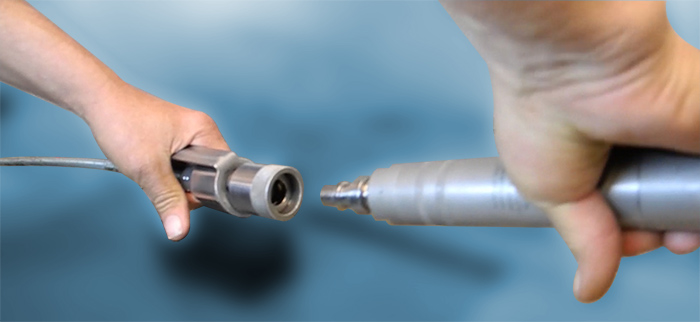

Easily connect and disconnect high-pressure tools,
valves, couplers, or other fittings.
Specifications |
Description |
|
| Maximum Pressure: | Working pressures up to 60,000 psi (4,137 bar) | |
| Temperature: | -350° F to 500° F (-212° C to 260° C) | |
| Services: | Water, oil, liquid nitrogen, other liquids and gases | |
| Self-Locking Design: | Stays connected under high pressure | |
| Valved and Non-valved: | Low pressure drop valved design, or full-flow non-valved versions | |
| Ports: | NPT, M/P, M, MS, H/P | |
| Seals: | Multiple seal options | |
| Construction: | Precision-machined, heat-treated stainless steel | |
| Custom Options: | Custom designs considered |
