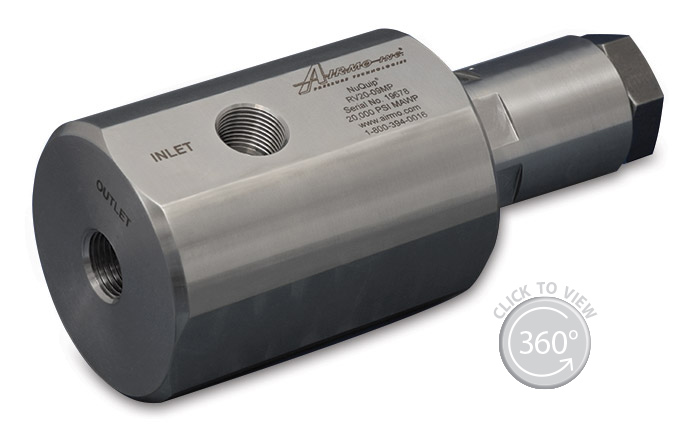

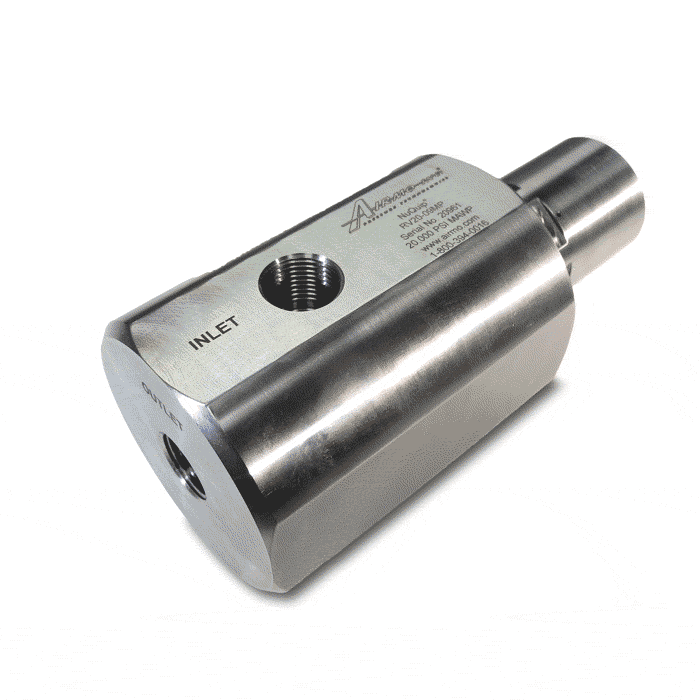

Model RV Series
Relief Valves
Pressures Up to 60,000 psi (4,137 bar)
The NuQuip® Model RV Series Relief Valve is designed to protect a system from being subjected to pressures that exceed their limits. The valve has a maximum working pressure from 5,000 psi (345 bar) to 60,000 psi (4,137 bar).
Specifications |
Description |
|
| Maximum Pressure: | Working pressures from 5,000 psi to 60,000 psi (345 bar to 4,137 bar) |
|
| Temperature: | 32° F to 120° F (0° C to 49° C) | |
| Services: | Water and other liquids | |
| Flow Capacity: | High relief flow with low pressure rise (in-field adjustable) | |
| Port Style: | MP or HP ports standard | |
| Seal Materials: | Multiple seal materials | |
| Actuation Option: | Air-piloted clamp and release | |
| Air Requirement: | 80 – 100 psi (5.5 – 6.9 bar) | |
| Construction: | Precision-machined, heat-treated stainless steel | |
| Custom Options: | Custom designs considered |
