High-Pressure Quick Disconnects
Model QD Series
Pressures Up to 60,000 psi (4,137 bar)
Airmo’s patented high-pressure Quick Disconnects easily connect and disconnect high-pressure tools, valves, couplers and other fittings. Designed for working pressures up to 60,000 psi, they are the ideal choice for cryogenics, hydrostatic pressure testing, blasting, waterjet or off-shore purposes. They can also be used with a variety of mediums, including water, oil, liquid nitrogen and other liquids/gases.
Airmo Quick Disconnects are available in valved or non-valved versions. The high-flow check valve configuration allows for minimal pressure drop. For increased operator safety, the unique self-locking coupler stays connected with the nipple under high pressure.
Handle Options Available
The optional quick disconnect handle eases automated coupling and
de-coupling of tools
| Specifications | Description |
|---|---|
| Standard Ports | Medium- or high-pressure models: NPT, M/P, M, MS, H/P |
| Valves | Valved or non-valve models |
| Nipples | Multiple configurations available |
| Construction | Precision-machined, heat-treated stainless steel |
| Handle | Optional |
| Coupler | Unique, self-locking to stay connected under high pressure |
| Seals | Multiple options available |
| Maximum Pressure | Working pressures up to 60,000 psi (4,137 bar) |
| Temperatures | -350°F to 500°F (-212°C to 260°C) |
| Services | Water, oil, liquid nitrogen, other liquids & gases |

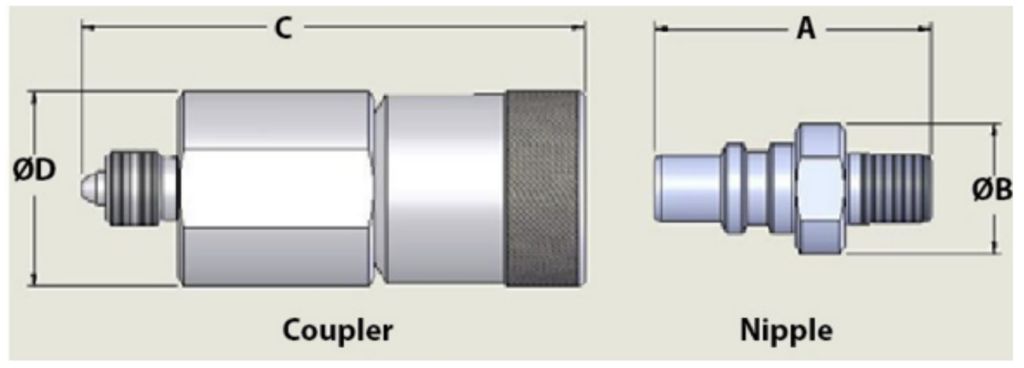

Model QD Series Dimensions
| Model | Dimension A | Dimension B | Dimension C | Dimension D | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inches | MM | Inches | MM | Inches | MM | Inches | MM | |||||||||
| Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | |
| QD20 | 2.50 | 5.40 | 63.5 | 137.2 | 1.38 | 2.13 | 34.9 | 54.0 | 4.94 | 5.48 | 125.5 | 139.2 | 2.13 | 2.13 | 54.0 | 54.0 |
| QD30 | 1.82 | 3.62 | 46.3 | 91.9 | 1.00 | 1.63 | 25.4 | 41.3 | 3.62 | 4.12 | 92.0 | 104.6 | 1.50 | 1.63 | 38.1 | 41.3 |
| QD60 | 2.38 | 3.97 | 60.3 | 100.7 | 1.00 | 1.13 | 25.4 | 28.6 | 3.85 | 4.11 | 97.7 | 104.3 | 1.50 | 1.50 | 38.1 | 38.1 |
The above dimensions are approximate and for reference only.
Assemblies using adaptors or Quick Disconnects with handles not included in table data.
Fitting dimensions vary with size and type of port, as well as check valve choice.
