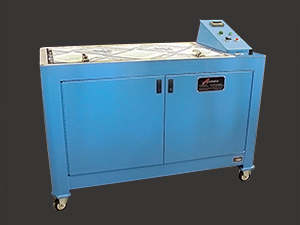

Model 30096HT Burst Test Chamber
Pressures Up to 30,000 psi (2,068 bar)
The TestMaster® Model 300096HT Burst Test Chamber along with TestMaster® Hydrostatic Test Tooling provides a safe, efficient means of destructive and non-destructive pressure testing and air under water leak testing for tubes, valves, air-conditioning coils, and hose assemblies.
These explosion resistant Burst Test Chamber systems are configured to customer specifications based on size, pressure capabilities, and testing requirements. The stainless steel construction makes this equipment durable for high-volume, high-pressure testing. Chambers are portable and easily installed using standard plumbing systems to provide pressure generation for oil or water services.
Specifications |
Description |
|
| Maximum Pressure: | Working pressures up to 30,000 psi (2,068 bar) | |
| Accuracy: | ±50 psi (±3.45 bar) | |
| Temperature: | 32° F to 120° F (0° C to 49° C) | |
| Services: | Water, de-ionized water, oil | |
| Electrical: | Tailored to type of electrical service used | |
| Control Options: | Manual, auto-cycle, PLC, or touch screen | |
| Digital Display: | View in-cycle data | |
| Flow Rate: | High volume | |
| Safety Interlock: | Protects operator by interrupting cycle | |
| Safety Shield: | High strength polycarbonate | |
| Noise Level: | Runs quietly | |
| Construction: | Stainless steel frame, impact resistant enclosure | |
| Custom Options: | Custom designs built to application requirements |
System Options
A range of pressure, enclosure and control options are available for Airmo Burst Chambers.
| Pressure | Enclosure | Control |
| 10,000 psi (689 bar) 20,000 psi (1,379 bar) 30,000 psi (2,068 bar) Custom pressures considered |
Self contained Modular pressure System/chamber |
Manual Auto-cycle PLC control PLC interface Custom controls considered |
Applications
The TestMaster® Model 30096HT Hydrostatic Burst Test Chamber is used for a variety of burst test applications.
- Destructive and non-destructive testing
- Air under water leak testing
- Pressure hold and leak testing
- Safe containment chamber testing
- Burst testing
- Research and development testing
- Sample lot testing
