Model MPG Series
Hydrostatic Test Tools
for Gas Pressure Testing
Pressures Up to 20,000 psi (1,379 bar)

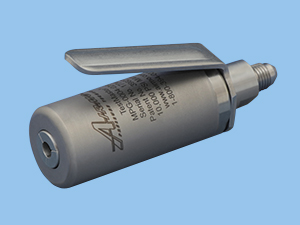

The patented TestMaster® Model MPG Series Medium Pressure Gas Test Tool is specially designed to grip and provide positive sealing for plain end tubing. The safety pre-grip of the clamping mechanisms assures a constant, positive grip during any work or operation cycle. The tool can be used with a variety of gases including helium, nitrogen, and hydrogen.
The Model MPG Series Tools are suitable for pressure testing, air underwater testing, and cleaning applications with working pressures up to 20,000 psi (1,379 bar), according to military, nuclear, automotive, and aerospace specifications: API, ASTM, ASME, ISO, DIN, and BS. The compact, balanced design is particularly suited to restricted work areas, such as aircraft lines or heating and cooling systems.
The Model MPG Series Tool handles standard and metric tube, pipe, and fitting sizes from 0.125 in. to 3.00 in. OD (3.2 mm to 76.2 mm OD) in diameter.
View Hydrostatic Pressure Testing Animation
Specifications |
Description |
|
| Maximum Pressure: | Working pressures up to 20,000 psi (1,379 bar) | |
| Tube OD Range: | 0.125 in. to 3.00 in. OD (3.2 mm to 76.2 mm OD) |
|
| Temperature: | -20° F to 160° F (-29° C to 71° C) | |
| Services: | Helium, nitrogen, hydrogen | |
| Velocity: | Full-flow, high pre fill | |
| Collet Grip and Seal: | On tube OD | |
| Gripping: | Pressure-compensated design for safe operation | |
| Tool Operation: | Lever operated | |
| Lever Collet Release: | Fast tool removal | |
| Special Collet Locking Design Principle: | Accommodates shorter length tube | |
| Predetermined Internal Tube Stop: | Requires no measuring | |
| Low Marking Collets: | Prevents tube end collapse and damage | |
| Built-in Tube End Tolerances: | Requires no square cut ends | |
| Compact, Balanced Design: | Ease of use in limited space applications | |
| Construction: | Precision-machined, heat-treated stainless steel | |
| Custom Options: | Custom designs considered |
Applications
The TestMaster® Model MPG Series Tool is used for a variety of pressure testing applications.
| Hydrostatic pressure testing |
| Air underwater leak testing |
| Tube production testing |
| Tube and system assembly testing |
| Cleaning applications |
